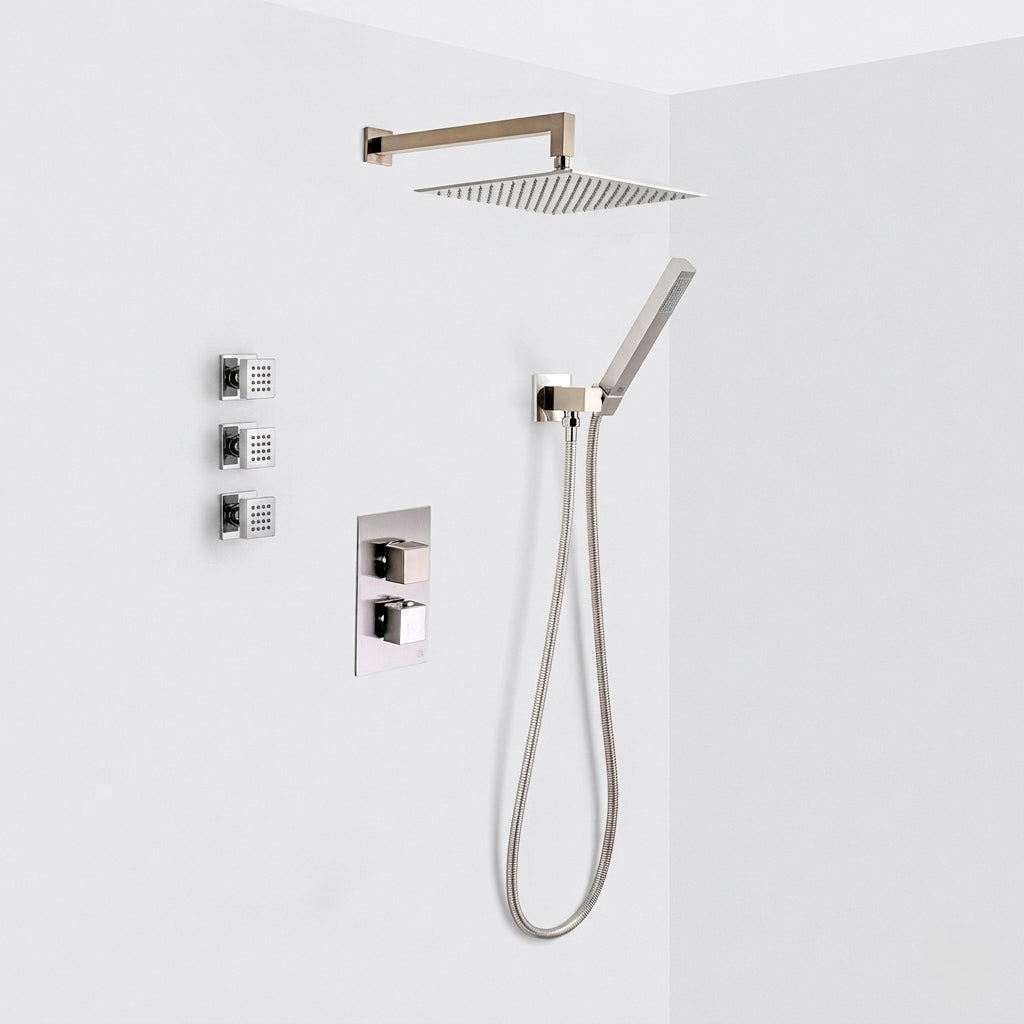

This all-in-one shower system offers a versatile experience with three separate water outlets. Its built-in design creates a clean, modern look, making it ideal for high-end bathroom projects that aim to maximize space without compromising on functionality.
Features:

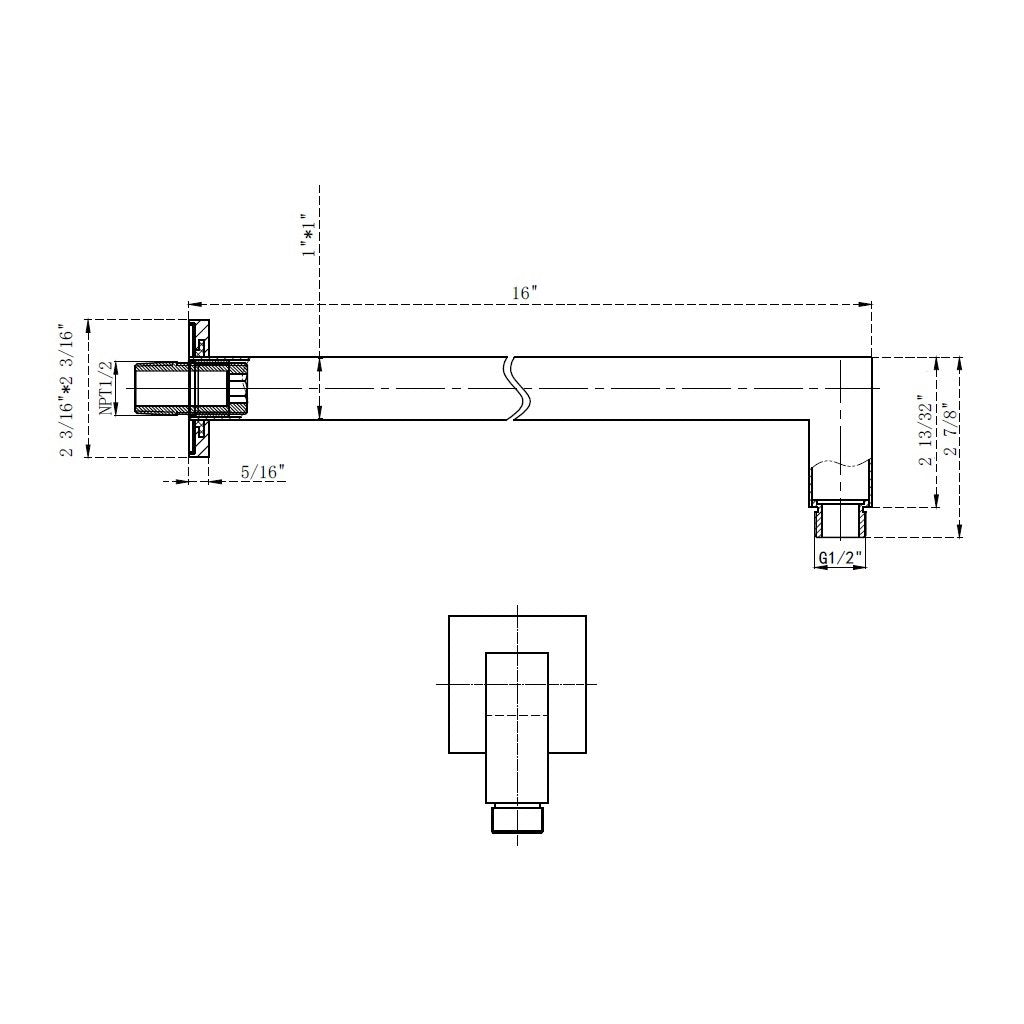

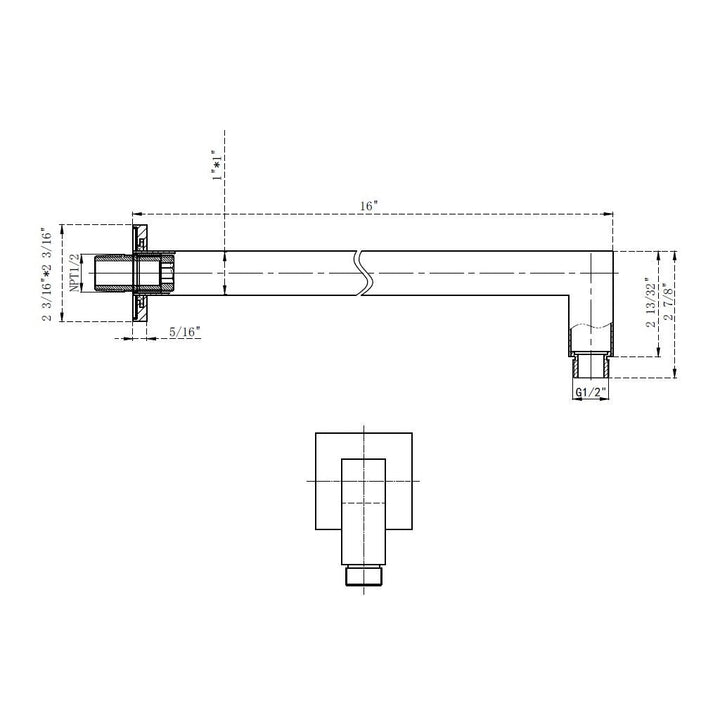

- Shower Arm:
- NPT 1/2 in. inlet
- G 1/2 in. Outlet

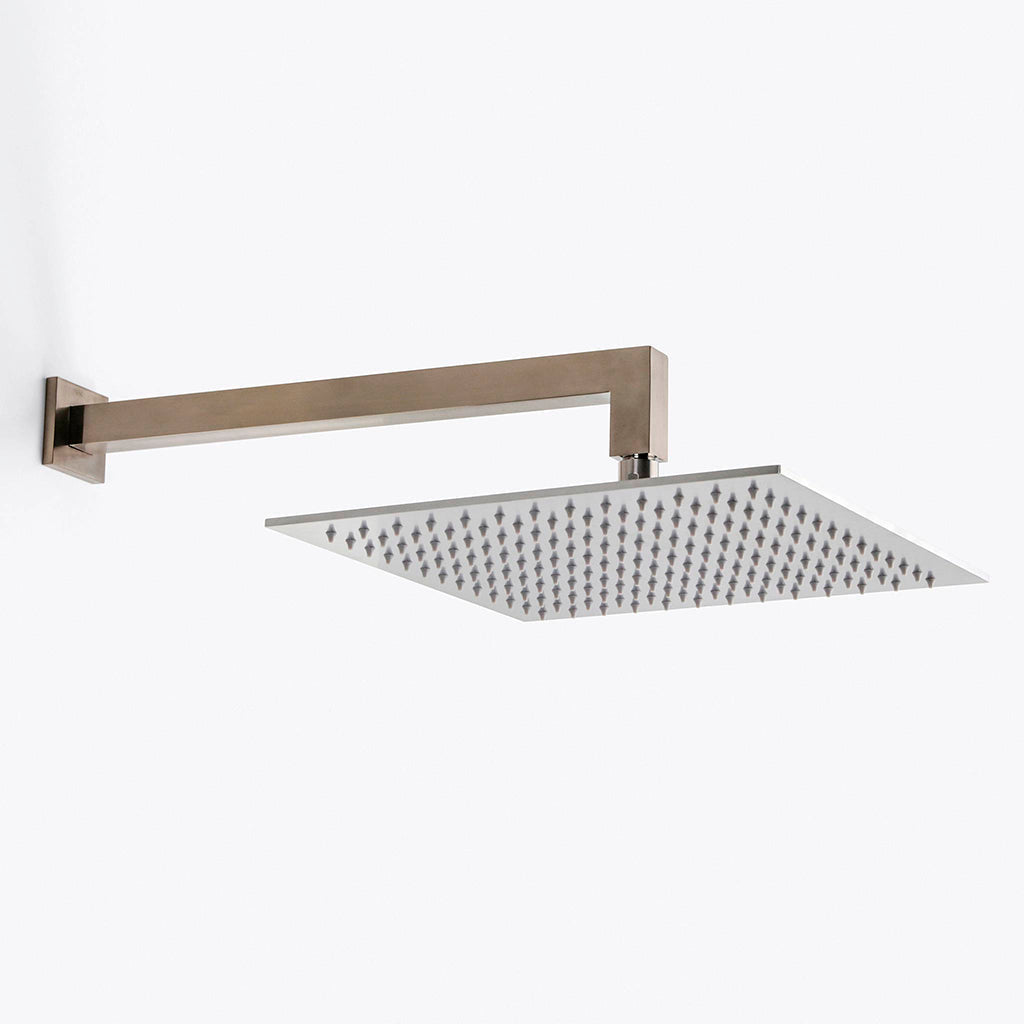

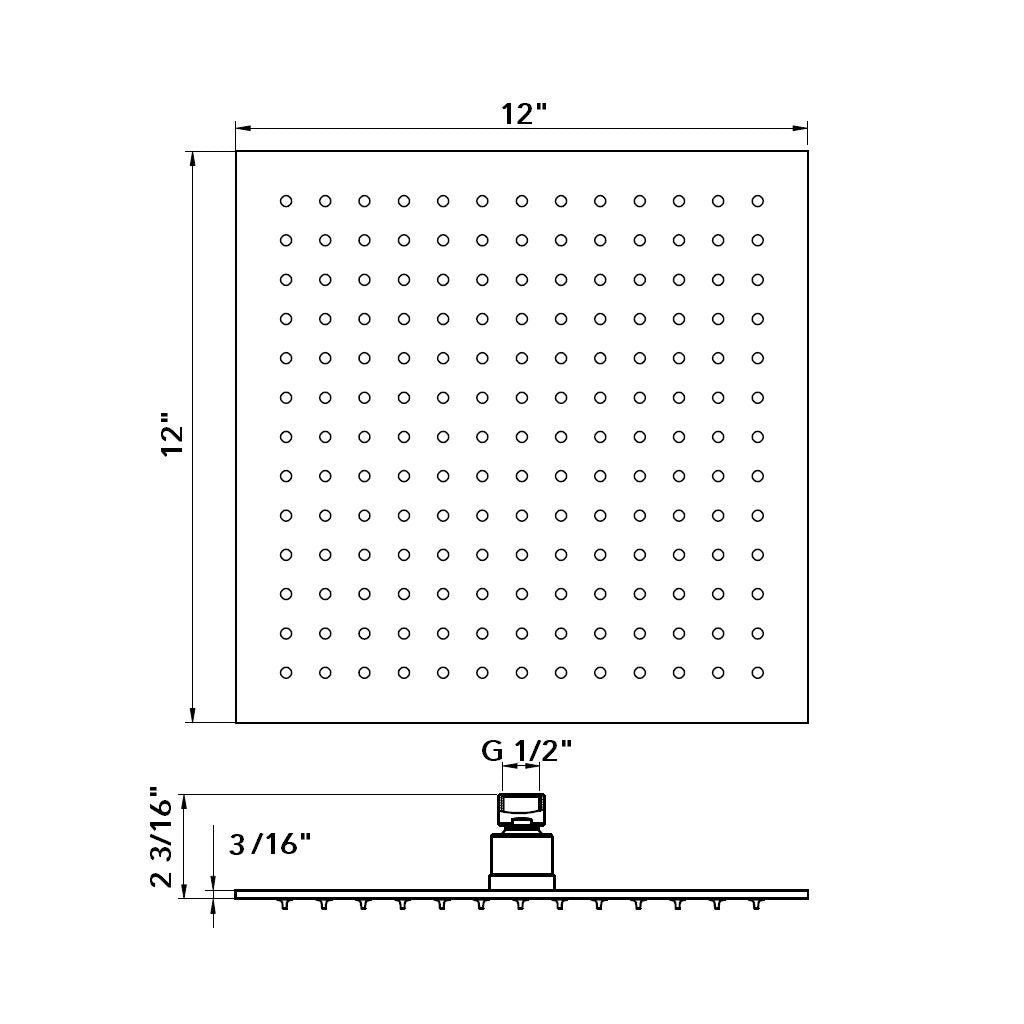

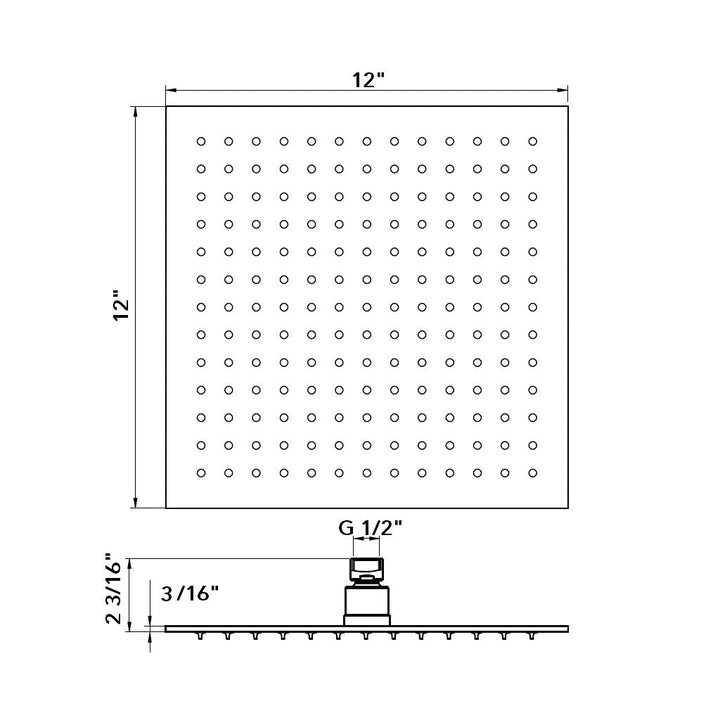

- Shower Head:
- Stainless steel construction
- Thin design (5mm / 0.2 in.)
- G 1/2 in. inlet
- Silicone sharp nozzles easy to clean
- 1.8 Gpm

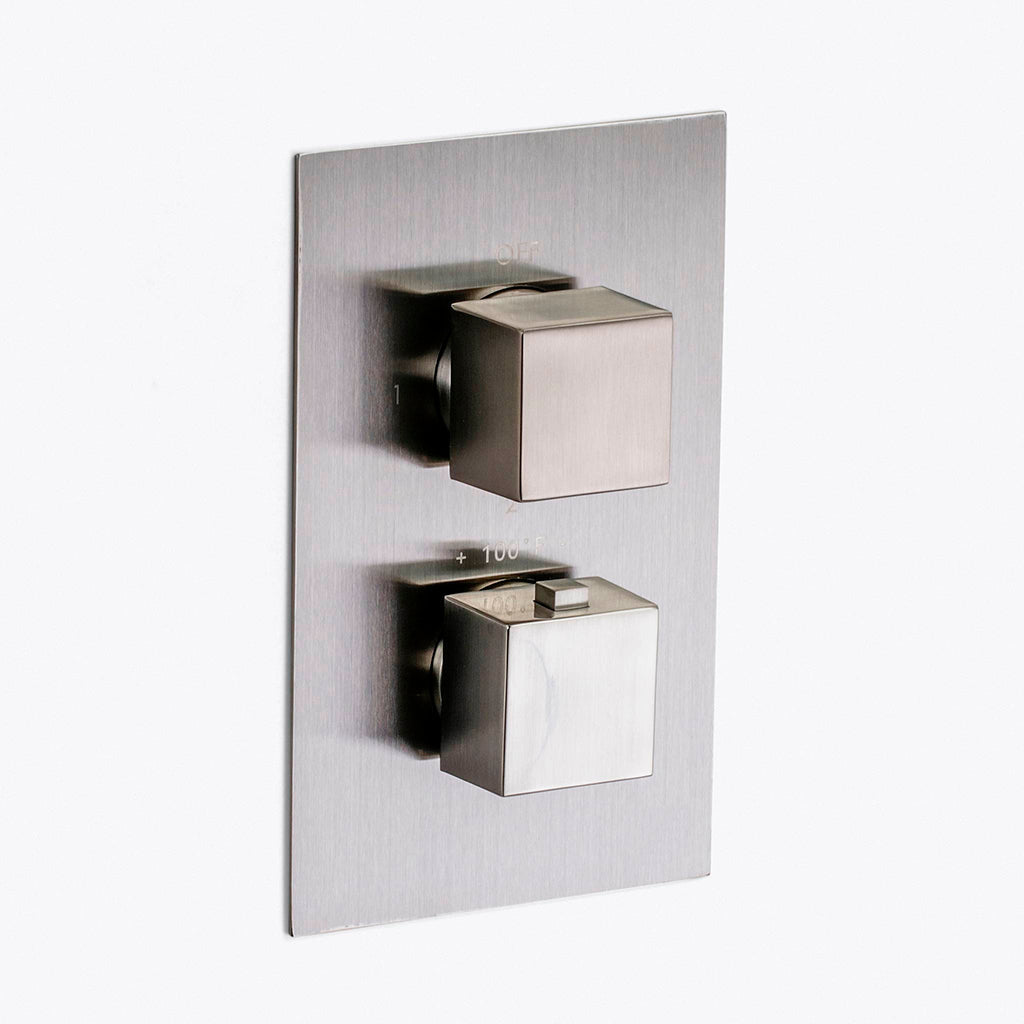

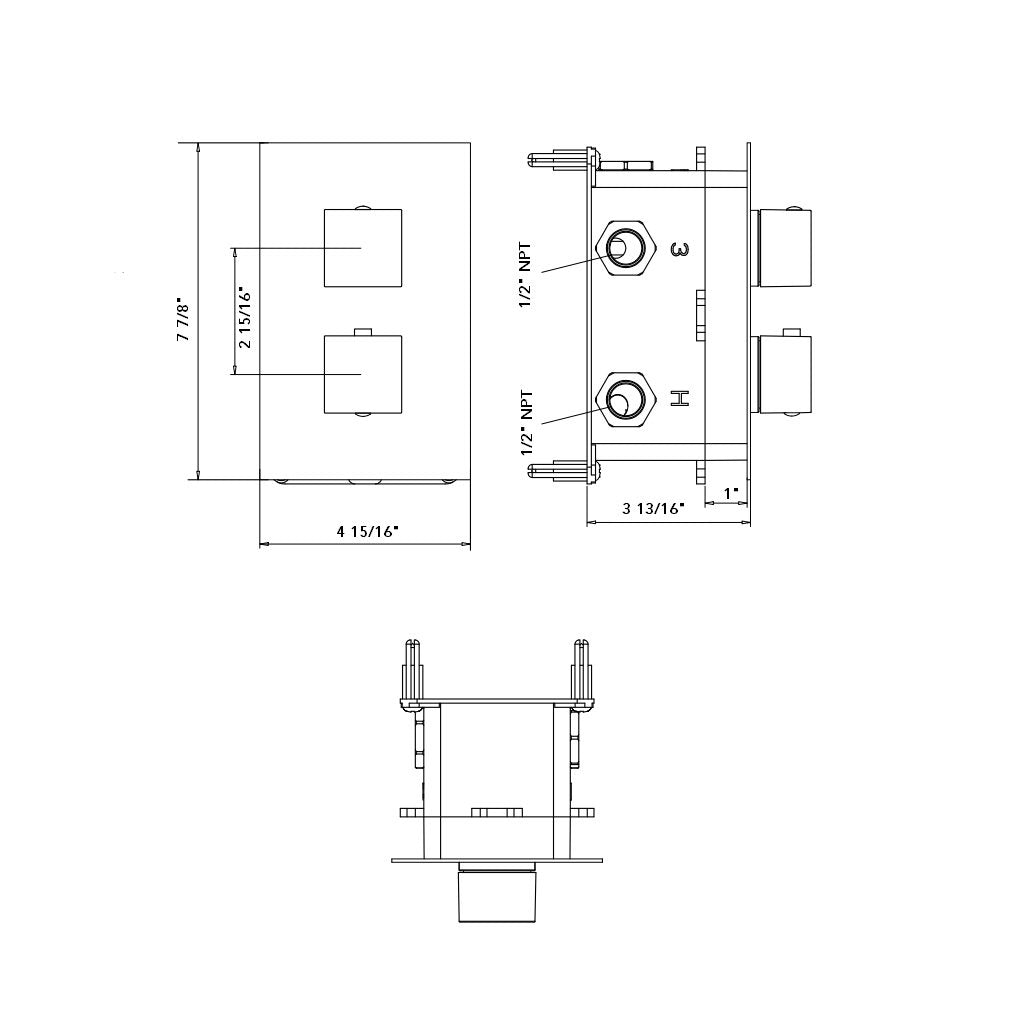

- Shower Mixer:
- Thermostatic valve.
- Brass valve body.
- Zinc alloy handles.
- Stainless steel trim plate with chrome surface.
- Designed to fit into standard 4.5" frame wall.
- Delivers a generous flow rate.
- Standard 1/2 inch inlet and outlet
- Flow rate 3.4 GPM
- UPC certified
- Diverter with 2 or 3 functions configurable during the installation process.
- Sedal ceramic thermostatic cartridge.
- Integrated shut-off valves.

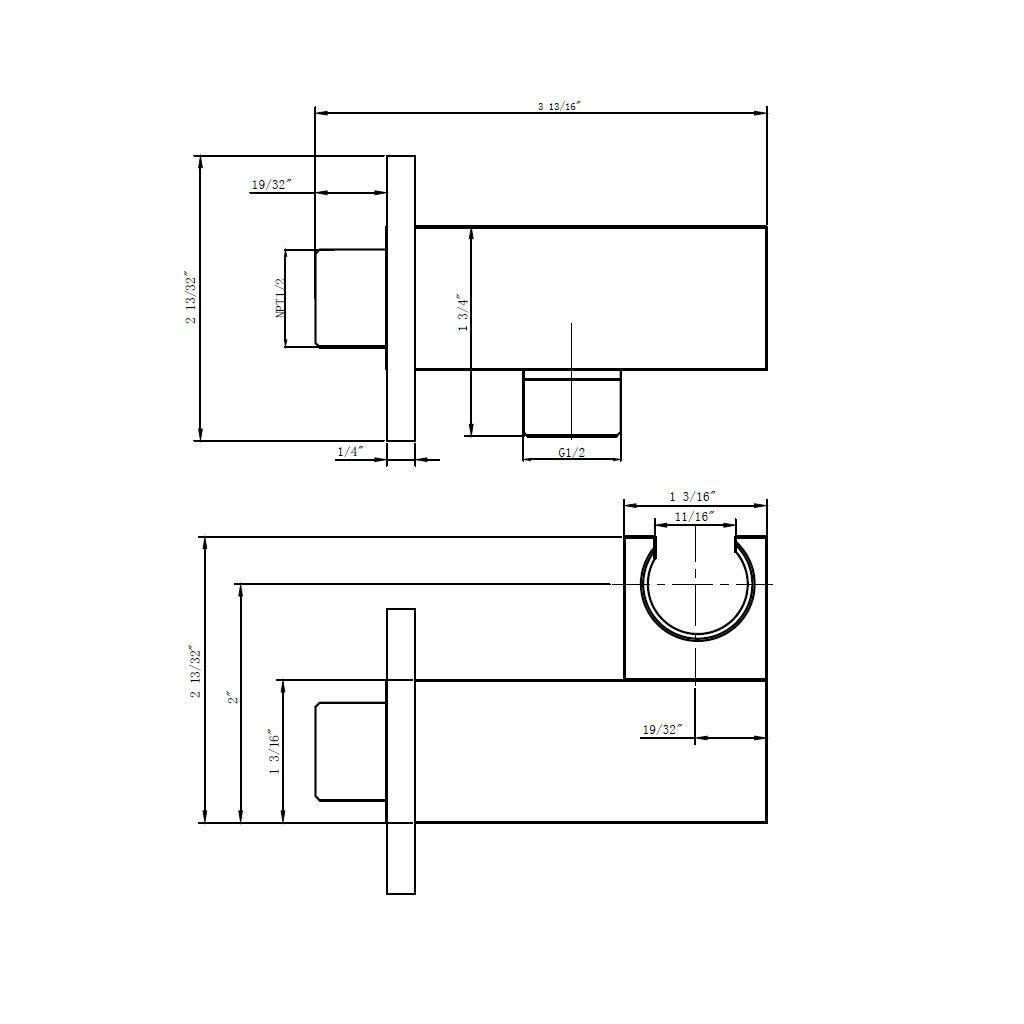

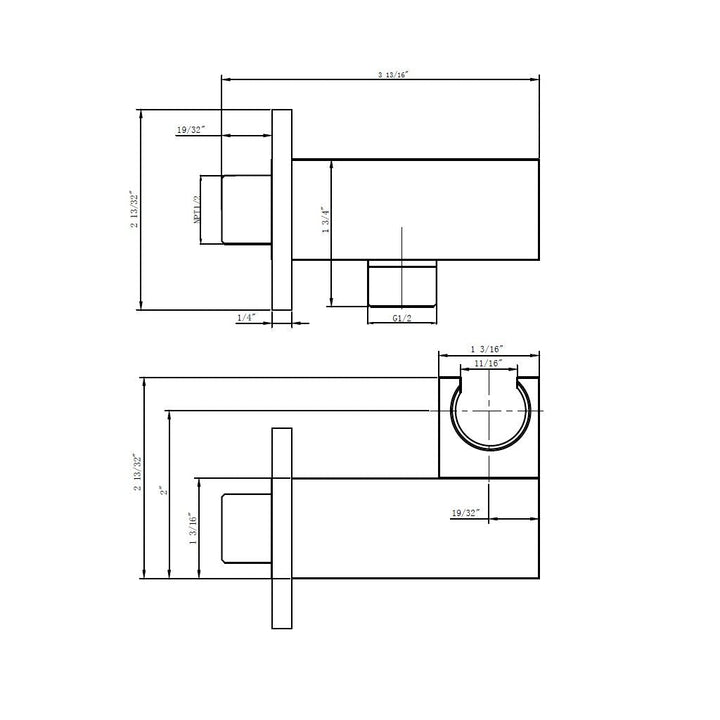

- Hand Shower Holder Connector:
- Adjustable scutcheon
- NPT 1/2 in. inlet
- G 1/2 in. Outlet
- Hose:
- Stainless steel construction
- 60 in. length
- Round connector on each end.
- Rubber washer on the bracket connector to prevent slipping.
- NPT 1/2 in. inlet and outlet connections.

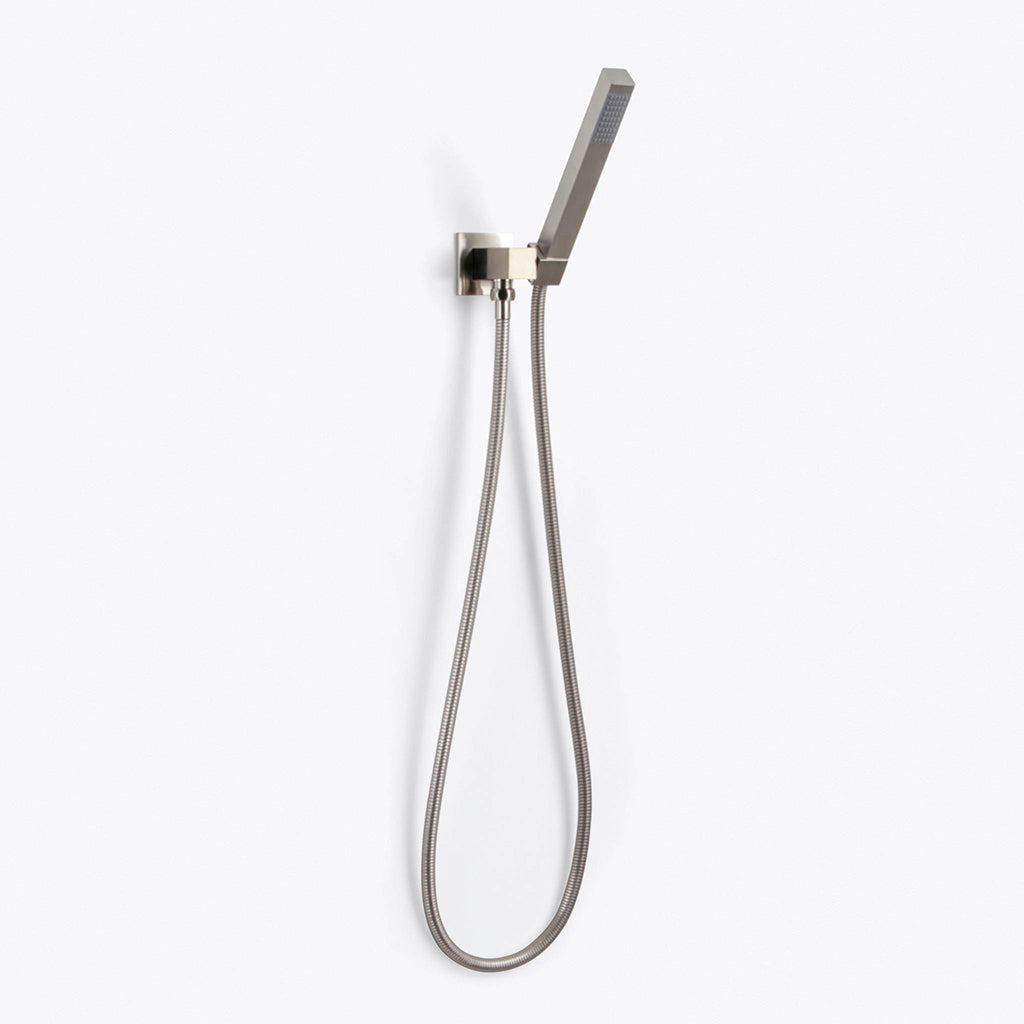

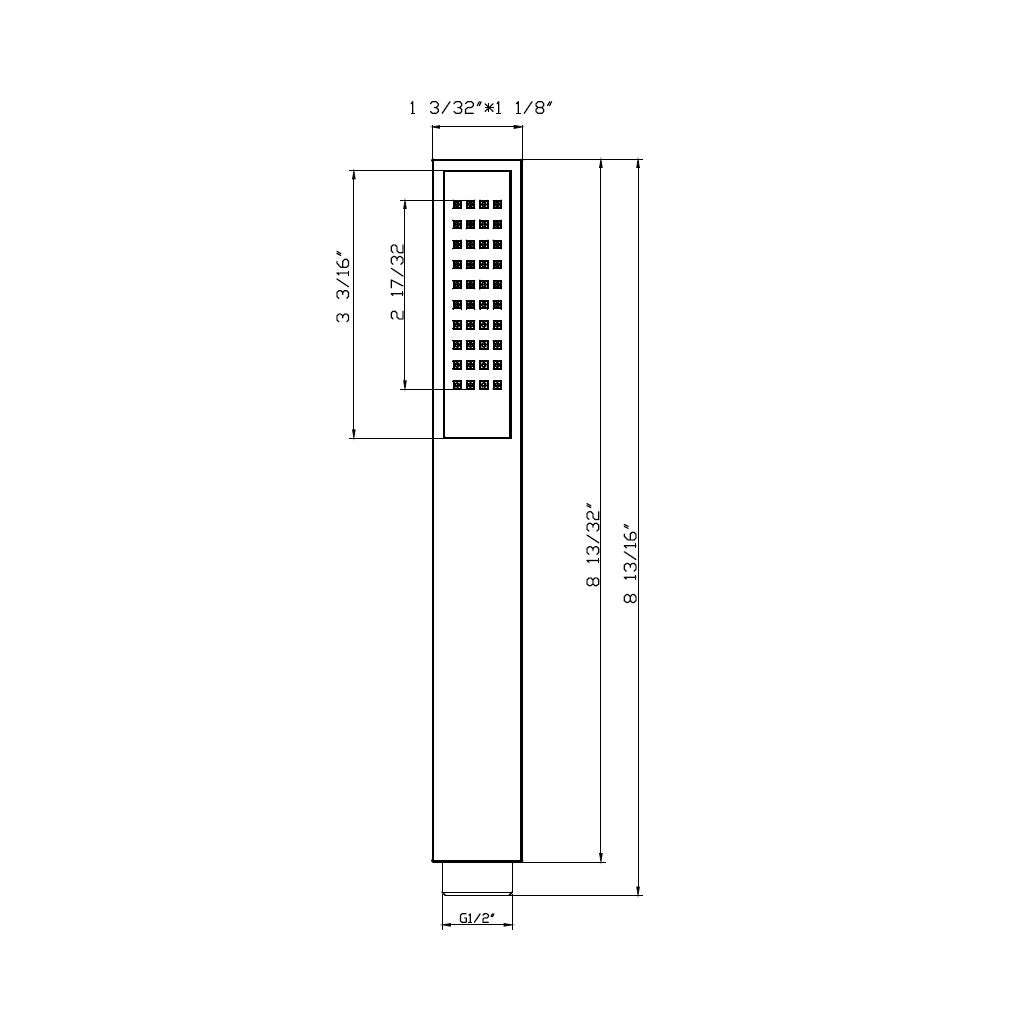

- Hand Shower:
- Only rain function
- 1.8 Gpm.
- Brass construction
- Silicone sharp nozzle easy to clean.
- G 1/2" inlet
- With back flow prevention check valve

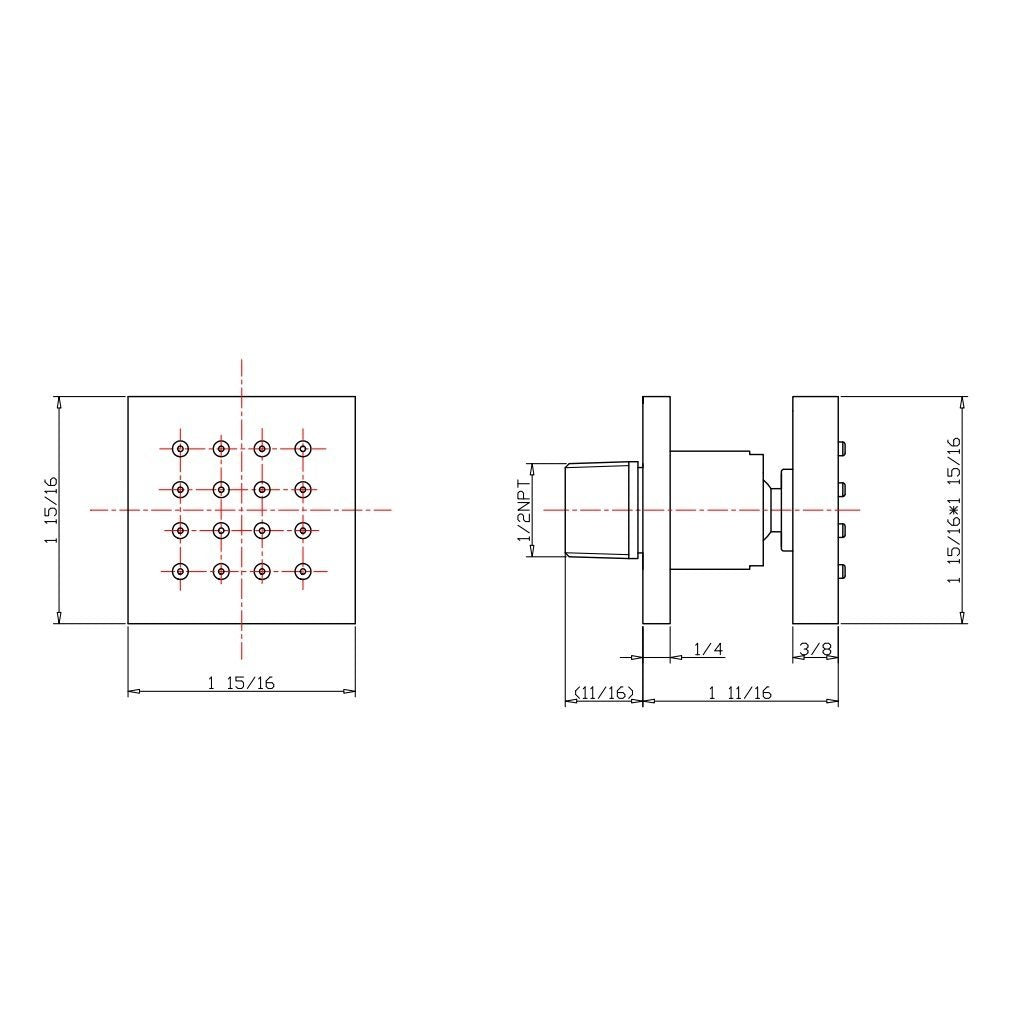

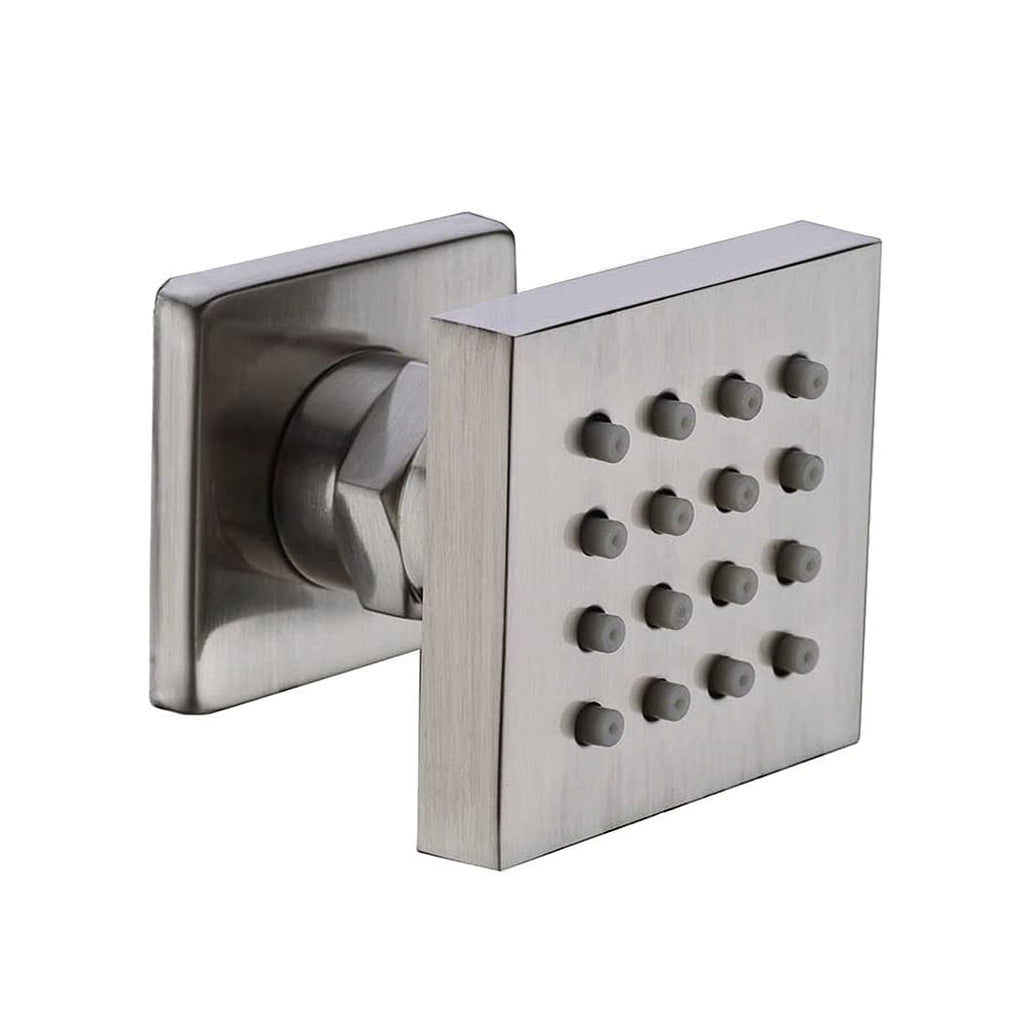

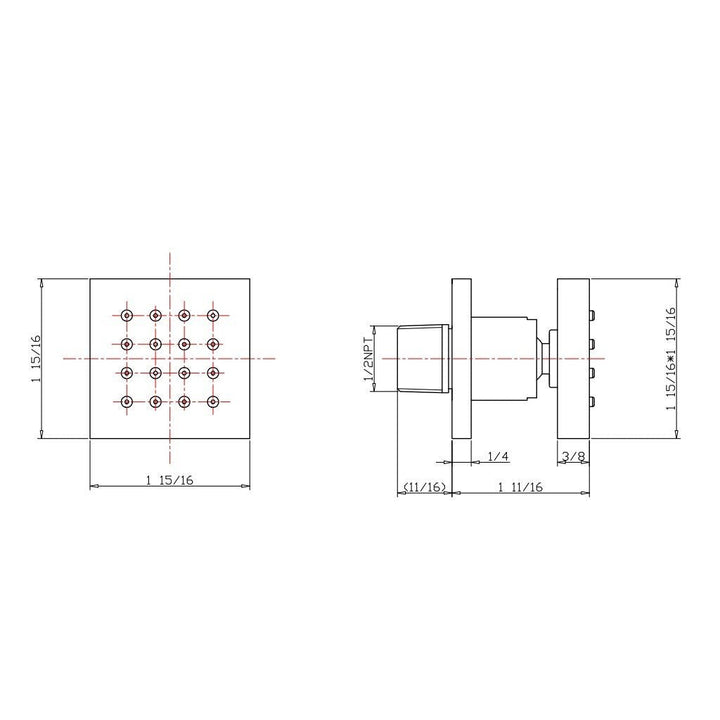

- Shower Jet:
- 1/2" NPT male inlet
- Easy clean nozzles
- 9.5L/min 2.5gpm regulator installed
- Single spray pattern
- Material: Brass
- Finish/Color: Brushed Nickel
- Dimensions:
- Weight: 13.2 lb.
- Rustproof: Yes
- Warranty (Years): 1
- Material Warranty: Yes
- Finish Warranty: Yes
- UPC Certified: Yes
- Easy Installation: Yes
There are 3 units left in stock.
